Product Description

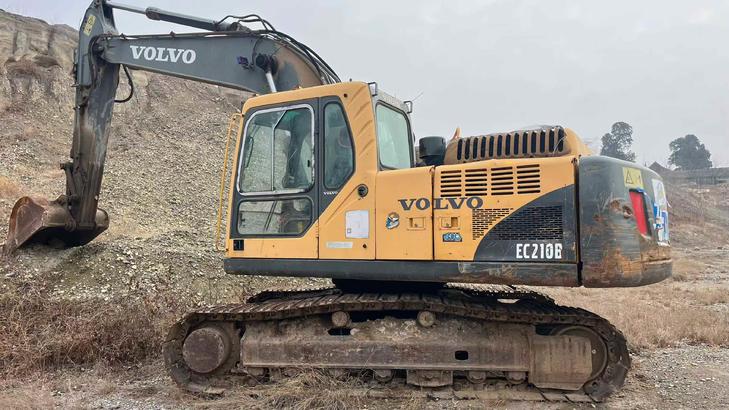

Built for precision and control, this 2010 Volvo EC210 Heavy Duty excavator delivers reliable performance across demanding job sites. Operating at 21 tons with a robust 123kW Volvo D6E engine, this machine combines power with operator-focused engineering. The spacious cabin offers exceptional 360-degree visibility, reducing blind spots and enhancing site awareness during complex operations. Ergonomic controls respond intuitively, while the advanced hydraulic system—featuring dual pumps at 2×207 L/min—ensures smooth, predictable movements whether digging, lifting, or grading.
- Working Weight: 22,100 kg with superior stability
- Digging Reach: 9,930 mm maximum radius for extended coverage
- Digging Depth: 6,744 mm for deep excavation tasks
- Bucket Capacity: 1.1 m³ with 123 kN digging force
- Hydraulic Efficiency: 34.3 MPa working circuit pressure
- Fuel Capacity: 300L tank for extended operational shifts
Currently located in Shandong, this joint venture/import model features a proven 6-cylinder powerplant delivering 730 N·m torque. Designed for operators who value comfort
| Specifications | Value |
|---|---|
| No. | 1018244 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 22100 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | VOLOV D6E |
| Rated power (kw/rpm) | 123/1800 |
| Maximum torque (N.m) | 730/1350 |
| Number of cylinders (PCS) | 6 |
| Rotation speed (rpm) | 12 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 123 |
| Rod digging force (kN) | 96 |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 5.6/3.5 |
| Turning torque (Nm) | 77 |
| Maximum flow of main pump (l/min) | 2*207 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Fuel Tank (L) | 300 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 21 |
| Total transport length (mm) | 9690 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 2926 |
| Counterweight ground clearance (mm) | 1011 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2850 |
| Total track length (mm) | 4460 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6744 |
Overview
No.1018244
Brand Name：
VolvoModel Number：
EC210 Heavy DutyYear：
2010
Location：
Shandong China
